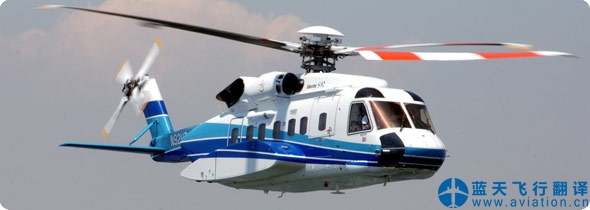

西科斯基S-92直升機

概述 Overview

The spacious, stand-up cabin of the S-92® helicopter provides the ultimate in comfort, safety and mission-flexibility required by demanding operators for a variety of roles, including offshore oil transport, executive transport, search and rescue, airline and utility. Airline configured S-92 helicopters seat up to 19 passengers in quiet, smooth and spacious airliner comfort, with power and endurance that enable fully loaded flights up to 430 nautical miles. Whatever your mission, the S-92 helicopter will provide a solution that best meets your needs.

特性 Attributes

動力裝置和燃油系統 Powerplant and fuel system

發動機數目 Number of Engines 2
發動機類型 Engine Type GE CT7-8A
起飛軸馬力 Take-off Shaft horsepower (5 min) 2,520 shp  1,897 kw
OEI軸馬力 OEI Shaft horsepower (30 sec) 2,740 shp  2.043 kw

性能 Performance

最大總重 Maximum Gross Weight 26,500 lbs  12,020 kg
最大巡航速度 Maximum Cruise Speed 151 kts  280 kph
最大航程 Maximum Range - No Reserve 539 nm  999 km
HIGE升限 HIGE Ceiling 9,000 ft  2,743 m
HOGE升限 HOGE Ceiling 6,500 ft  1,981 m
單發工作升限 OEI Service Ceiling 5,000 ft  1,524 m
AEO工作升限 AEO Service Ceiling 15,000 ft  4,572 m
