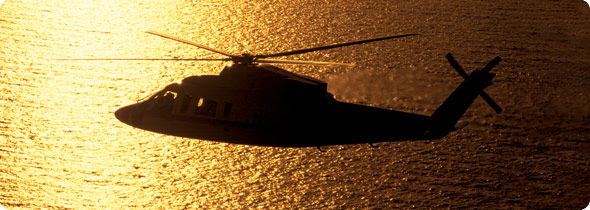

西科斯基S-76C++直升機

概述 Overview

The proven S-76® helicopter continues to improve, responding to today's most critical market requirements with increased performance, quiet comfort and spacious cabin interiors, enhanced safety, dispatch reliability, operating cost efficiencies and superior mission versatility.

特性 Attributes

動力裝置和燃油系統 Powerplant and fuel system

發動機數目 Number of Engines 2
發動機類型 Engine Type Turbomeca Arriel 2S2
起飛軸馬力 Take-off Shaft horsepower (5 min) 922 shp  688 kw
OEI軸馬力 OEI Shaft horsepower (30 sec) 1,032 shp  770 kw

性能 Performance

最大總重 Maximum Gross Weight 11,700 lbs  5,306 kg
最大巡航速度 Maximum Cruise Speed 155 kts  287 kph
最大航程 Maximum Range - No Reserve 411 nm  762 km
HIGE升限 HIGE Ceiling 7,050 ft  2,149 m
HOGE升限 HOGE Ceiling 3,300 ft  1,006 m
單發工作升限 Single-engine service ceiling 4,900  ft  1,493  m
AEO工作升限 AEO Service Ceiling 13,800 ft  4,206 m
