客艙 Accommodations
客艙長度 Cabin Length 20 ft 6.1 m
客艙寬度 Cabin Width 6.6 ft 2.0 m
客艙高度 Cabin Height 6.0 ft 1.8 m
客艙面積 Cabin Area 128 ft2 11.9 m2
客艙容積 Cabin Volume 700 ft3 19.8 m3
行李容積 Baggage Volume 140 ft3 3.96 m3

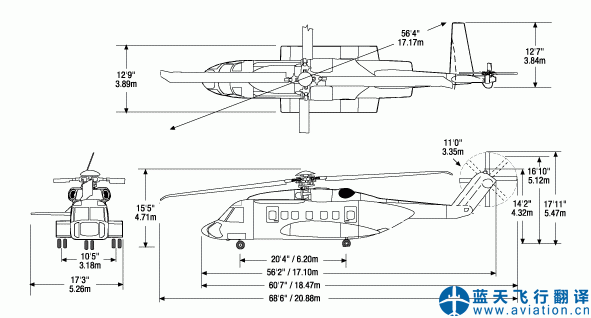

西科斯基S-92直升機(jī)尺寸
安全設(shè)備 Safety

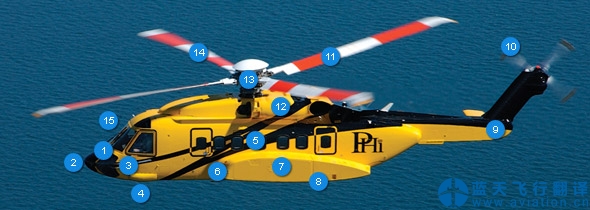

西科斯基S-92直升機(jī)安全系統(tǒng)
1, High-visibility cockpit
2, High-intensity Radiated Field protection (HIRF)
3, Health and Usage Management System (HUMS)
4, Enhanced Ground Proximity Warning Protection (EGPWS)
5, Crashworthy seats for all occupants
6, Fuel sponson design keeps fuel away from passengers
7, Suction fuel system prevents hazardous fuel spray
8, Energy-absorbing landing gear
9, Built-in corrosion resistance
10, FAR/JAR 29, Amendment 47 Bird strike protection
11, Lightning strike protection
12, High energy turbine burst protection
13, Flaw-tolerant design
14, Optional FAA/JAA certified Rotor Ice Protection System (RIPS)
15, Traffic Collision Avoidance System (TCAS1)
|
