cular to the radius surface. If the crack direction is not known, move the probe along and across the radius as shown in Detail XIII. (e) Edges: When you do an inspection near the edge of a part, use a nonconductive straightedge to keep the probe the same distance from the edge of the part. See Detail X to see how to examine a part near the edge. See Detail XI to examine the edge of a part. (4). Make a mark at the locations that cause signals that are more than 20 percent of the display above the balance point. NOTE; To find the end of the crack, continue to move the probe across the crack until there is no more crack signal. (5). Frequently do a check of the instrument calibration as follows: NOTE: Do not adjust the gain. (a) Put the probe on the reference standard to get a signal from the notch. (b) Compare the signal you got from the notch during calibration with the signal you get now. (c) If the signal has changed 10 percent or more, do the calibration and inspection again. 六、檢查結果Inspection Results A. Fast upscale signals that are more than 50 percent of the signal height from the reference notch are signs of defects. B. Compare the signal that occurs during the inspection to the signal you got from the notch in the reference standard. NOTE: The signal from a crack can have less horizontal movement than the signal from the notch in the reference standard. See Detail VIII. (1) To find the end of a crack, continue to move the probe across the crack until there is no more crack signal. (2) To make an estimate of the depth of a crack that is less than 0.02 inch (0.5 mm) deep, compare the horizontal movement of the crack signal to the horizontal movement of the reference standard notch.A reference standard with notches that are less than 0.02 inch(0.5 mm) deep can also be used. C. The conditions specified below can also cause defect signals: (1).The probe is moved too close to an edge. Use a nonconductive straightedge to keep the probe the same distance from the edge. (2).A worn probe coil. Put a piece of tape on the surface of the probe coil or get a new probe and calibrate the instrument again. (3) Local changes in material conductivity. Compare the signal to the signal from the reference standard. Signals from conductivity changes will be slower than the signal from the reference standard. D. Do one of the procedures that follow to make sure a signal is the result of a defect. (1)Remove the surface finish and do a visual inspection with 10-power (or higher) magnification and sufficient light. (2) Do a penetrant inspection of the area as specified in Standard Overhaul Practices Manual, Subject 20-20-02, " Penetrant Inspection Methods". 二. A320 系列飛機無損檢測手冊簡介 下面再介紹有關AIRBUS NTM 的使用

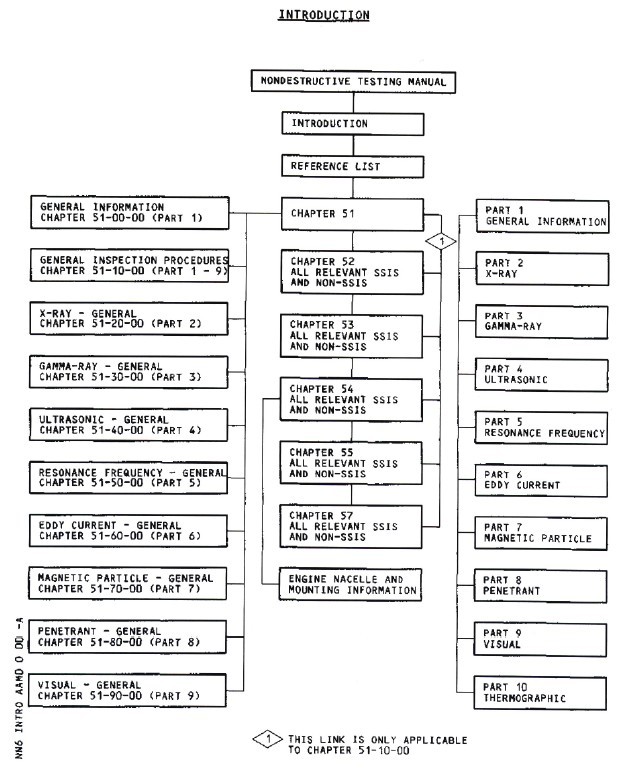

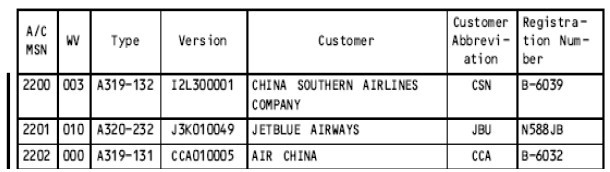

 在NTM 中，按照各類方法進行了分類，也采用了按ATA 章節進行查詢，
 對發動機和機載附件的修理與檢查時,除參考除參考主機廠的NDT 手冊及SOPM 外，還應 |
